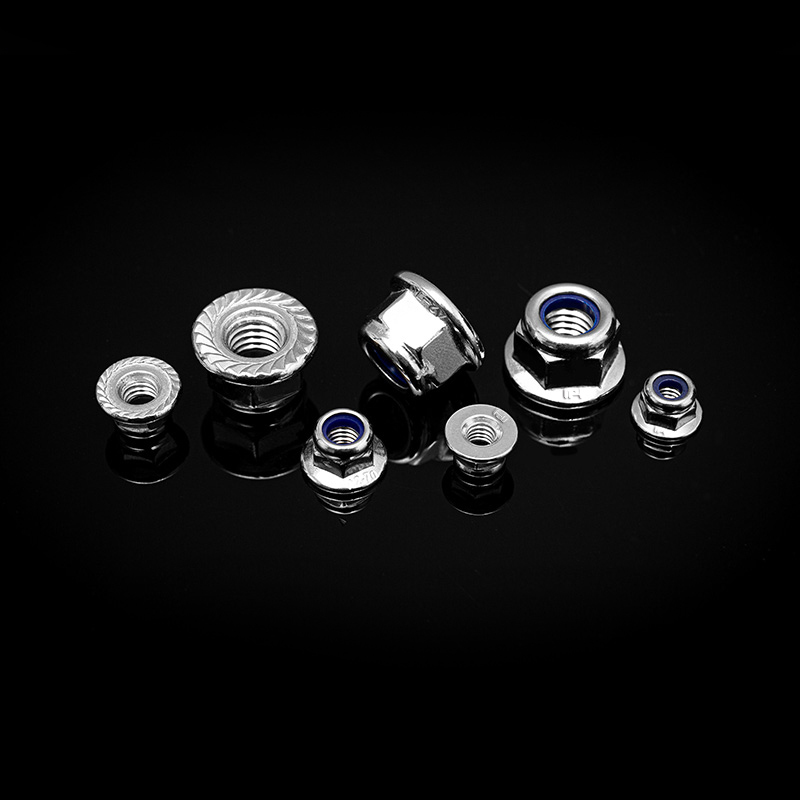

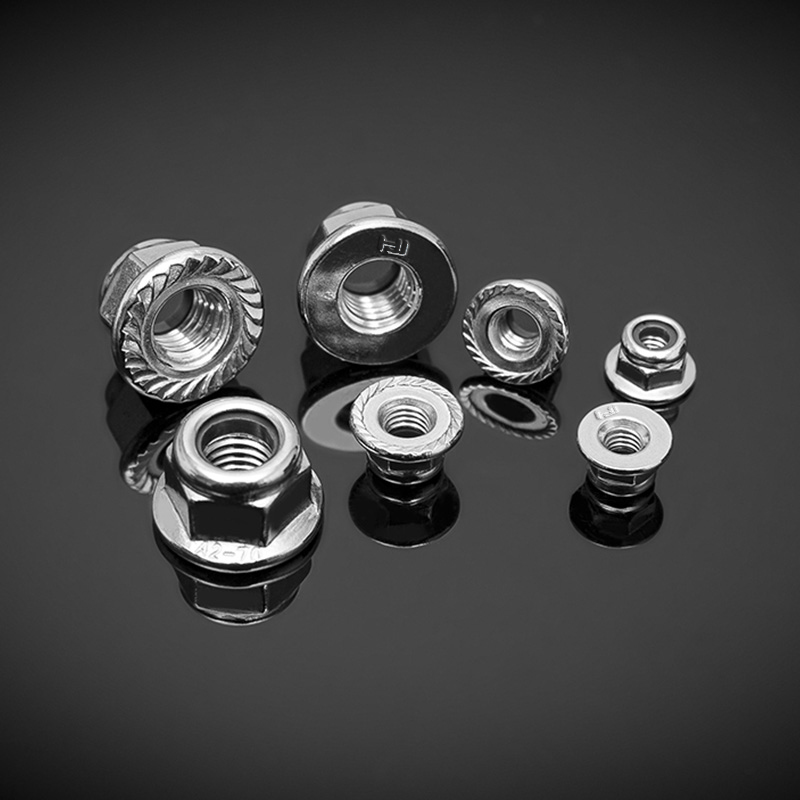

DIN6927 Stainless Steel Non-Metallic Flange Lock Nuts


DIN6927 Stainless Steel Non-Metallic Flange Lock Nuts
DIN6927 Stainless Steel Non-Metallic Flange Lock Nuts DIN6927 Stainless Steel Non-Metallic Flange Lock Nuts

Appearance Characteristics

Hexagonal profile with non-metallic flange components

Internal Features

Internal metal thread, with non-metallic flange added on the outside to provide locking and stability functions

Core Purpose

Used for fastening connections that require locking and stabilization functions

Advantages and Features

Internal metal thread, with non-metallic flange added on the outside to provide locking and stability functions

Used for fastening connections that require locking and stabilization functions

Typical Uses

Used in anti-loosening design and occasions with friction requirements

Key Indicators for Selection

Thread type, flange size, insert material and type

Industry-Specific Requirements

Electronic equipment: suitable for fasteners with special requirements for current.

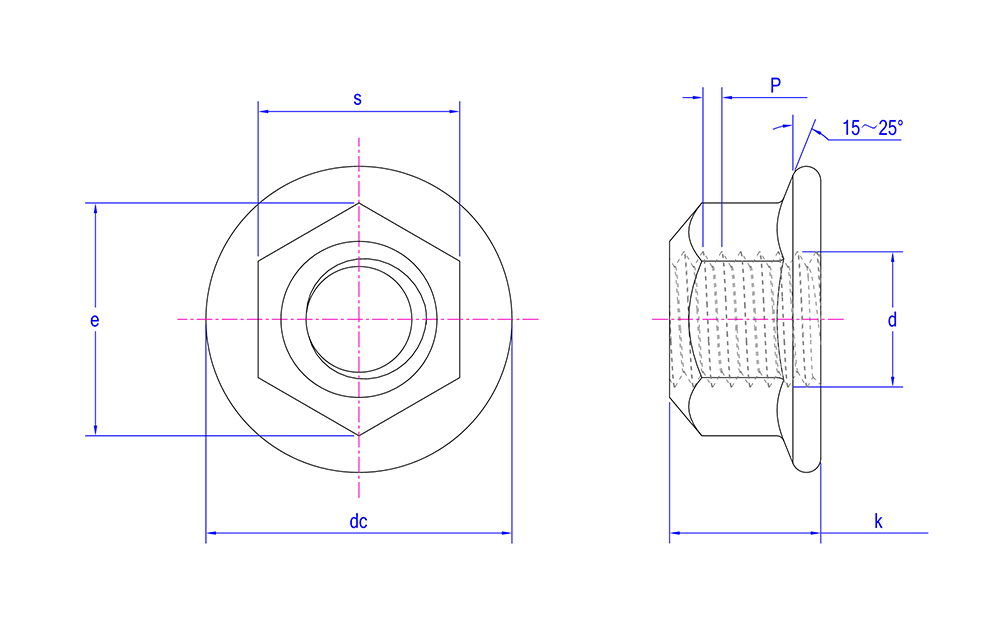

Product specification:

Mon M5 M6 M8 M10 M12 M14 M16 M20
P 0.8 1 1|1.25 1|1.25|1.5 1.25|1.5|1.75 1.5|2 1.5|2 1.5|2.5
dc max 11.8 14.2 17.9 21.8 26 29.9 34.5 42.8
e min 8.79 11.05 14.38 16.64 20.03 23.36 26.75 32.95
k max 6.2 7.3 9.4 11.4 13.8 15.9 18.3 22.4
s max 8 10 13 15 18 21 24 30
s min 7.78 9.78 12.73 14.73 17.73 20.67 23.67 29.16
