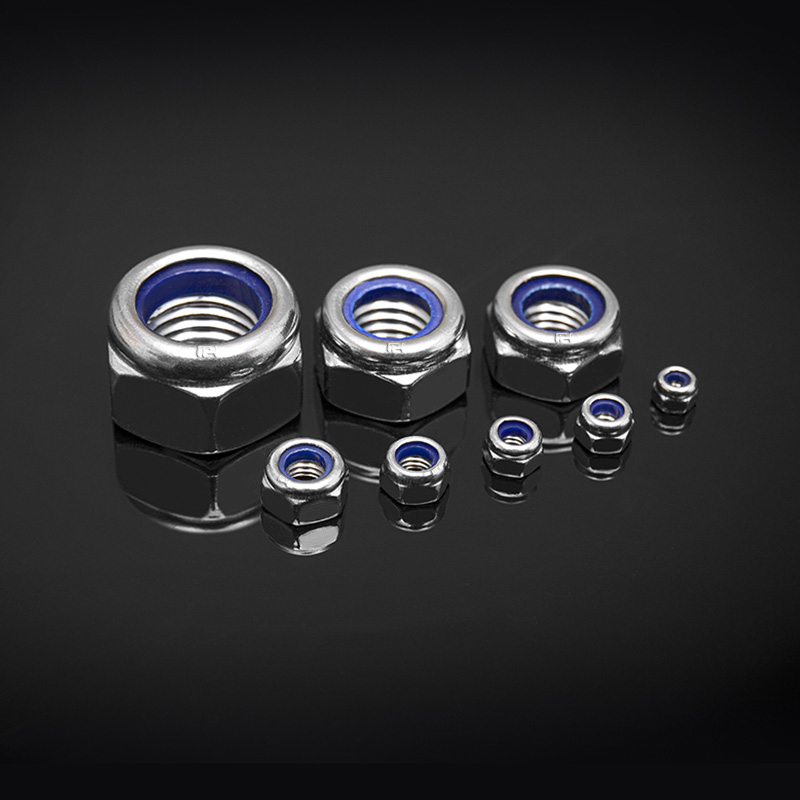

DIN 985 Stainless Steel Prevailing Torque Type Hexagon Thin Nuts With Nonmetallic Insert


DIN 985 Stainless Steel Prevailing Torque Type Hexagon Thin Nuts With Nonmetallic Insert
DIN 985 Stainless Steel Prevailing Torque Type Hexagon Thin Nuts With Nonmetallic Insert DIN 985 Stainless Steel Prevailing Torque Type Hexagon Thin Nuts With Nonmetallic Insert

Appearance Characteristics

Hexagonal, with non-metallic locking component design

Internal Features

Internal with non-metallic material inserts, such as nylon rings, to enhance friction and locking force

Core Purpose

Used for fastening connections to prevent loosening and vibration

Advantages and Features

Internal with non-metallic material inserts, such as nylon rings, to enhance friction and locking force

Used for fastening connections to prevent loosening and vibration

Typical Uses

Used in electrical equipment and equipment that requires metal conductivity

Key Indicators for Selection

Thread type, material, insert type

Industry-Specific Requirements

Electrical industry: suitable for connections that prevent current conduction.

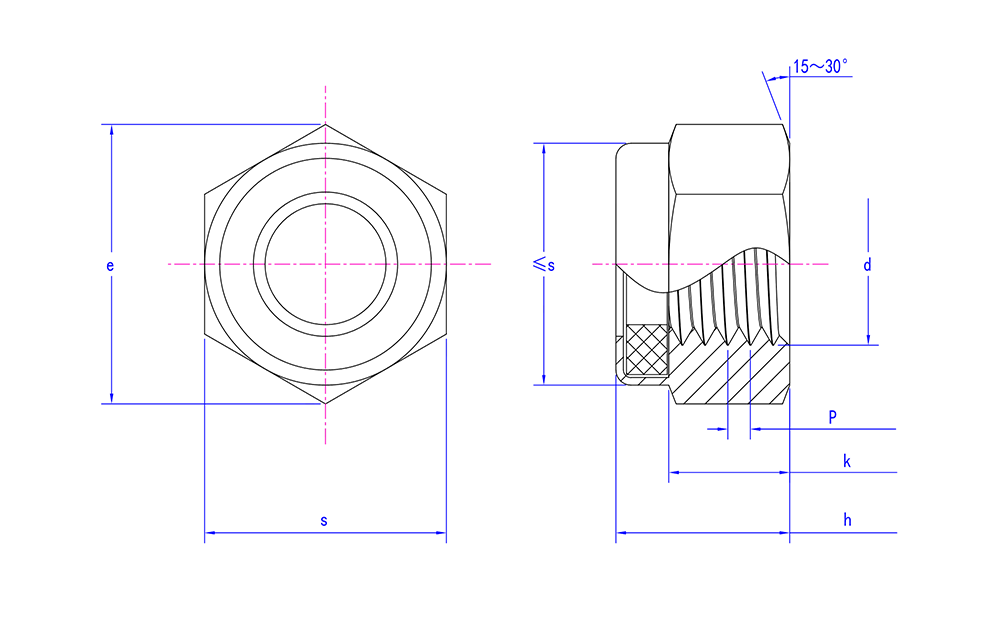

Product specification:

Mon M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48
P 0.5 0.7 0.8 1 1 1|1.25 1|1.25|1.5 1.25|1.5|1.75 1.5|2 1.5|2 1.5|2|2.5 1.5|2|2.5 1.5|2|2.5 2|3 2|3 2|3.5 2|3.5 3|4 3|4 3|4.5 3|4.5 3|5
e min 6.01 7.66 8.79 11.05 12.12 14.38 18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 72.09 76.95 82.6
h max 4 5 5 6 7.5 8 10 12 14 16 18.5 20 22 24 27 30 33 36 39 42 45 48
h min 3.7 4.7 4.7 5.7 7.14 7.64 9.64 11.57 13.3 15.3 17.66 18.7 20.7 22.7 25.7 28.7 31.4 34.4 37.4 40.4 43.4 46.4
k min 2.4 2.9 3.2 4 4.7 5.5 6.5 8 9.5 10.5 13 14 15 15 17 19 22 25 27 29 32 36
s max 5.5 7 8 10 11 13 17 19 22 24 27 30 32 36 41 46 50 55 60 65 70 75
s min 5.32 6.78 7.78 9.78 10.73 12.73 16.73 18.67 21.67 23.67 26.16 29.16 31 35 40 45 49 53.8 58.8 63.8 68.1 73.1
