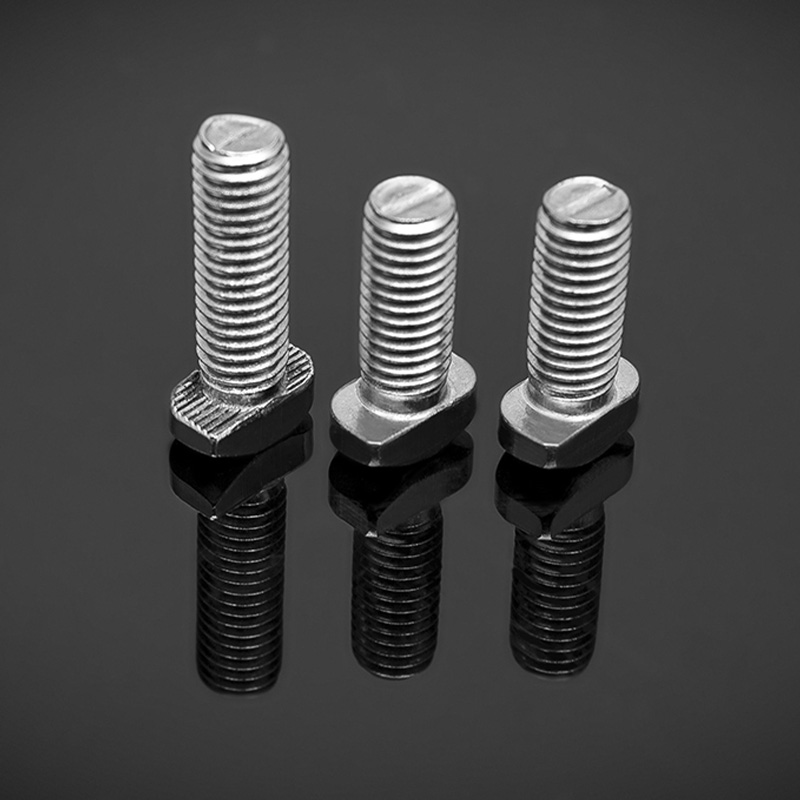

DIN 261 Stainless Steel T-Bolts


DIN 261 Stainless Steel T-Bolts
DIN 261 Stainless Steel T-Bolts DIN 261 Stainless Steel T-Bolts

Head Features

Standard T-type neck

Rod Features

Sliding embedded groove rail

Core Purpose

Quick installation and removal, suitable for high load applications

Advantages and Features

T-shaped design for easy installation and removal

Typical Uses

High-load applications, fast installation and disassembly, automotive, railway, machinery equipment.

Key Indicators for Selection

T-head shape, bolt length, diameter, thread type, surface treatment (corrosion protection).

Industry-Specific Requirements

Railway industry: used for fastening with large loads and needs to withstand vibration.

High-load equipment: suitable for situations that require quick disassembly and high-load connections.

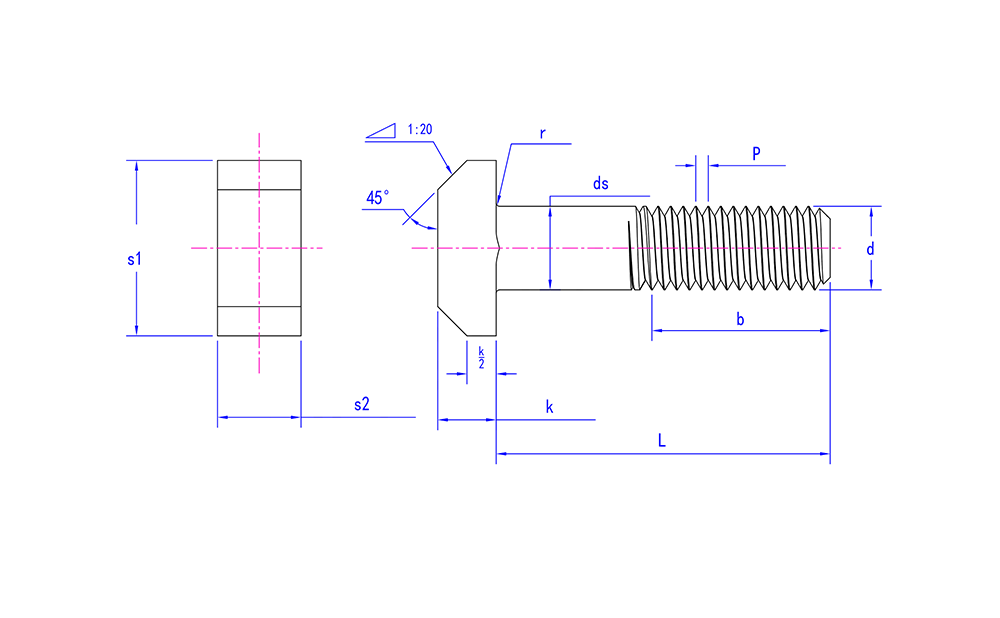

Product specification:

Mon M8 M10 M12 M16 M20 M24 M30
P 1.25 1.5 1.75 2 2.5 3 3.5
ds max 8.58 10.58 12.7 16.7 20.84 24.84 30.84
ds min 7.42 9.42 11.3 15.3 19.16 23.16 29.16
k max 5.9 7.5 8.75 11.4 13.9 15.9 20
k min 5.1 6.5 7.25 9.6 12.1 14.1 18
s2 max 8.75 10.75 12.9 16.9 21 25 31
s2 min 7.25 9.25 11.1 15.1 19 23 29
s1 max 18.9 22 27 31 37.25 44.25 55.5
s1 min 17.1 20 25 29 35.75 41.75 52.5
r 0.5 0.5 1 1 1 1.6 1.6
