Home / Product / Stainless Steel Nuts / Stainless Steel Square Nut / DIN 928 Stainless Steel Square Weld Nuts

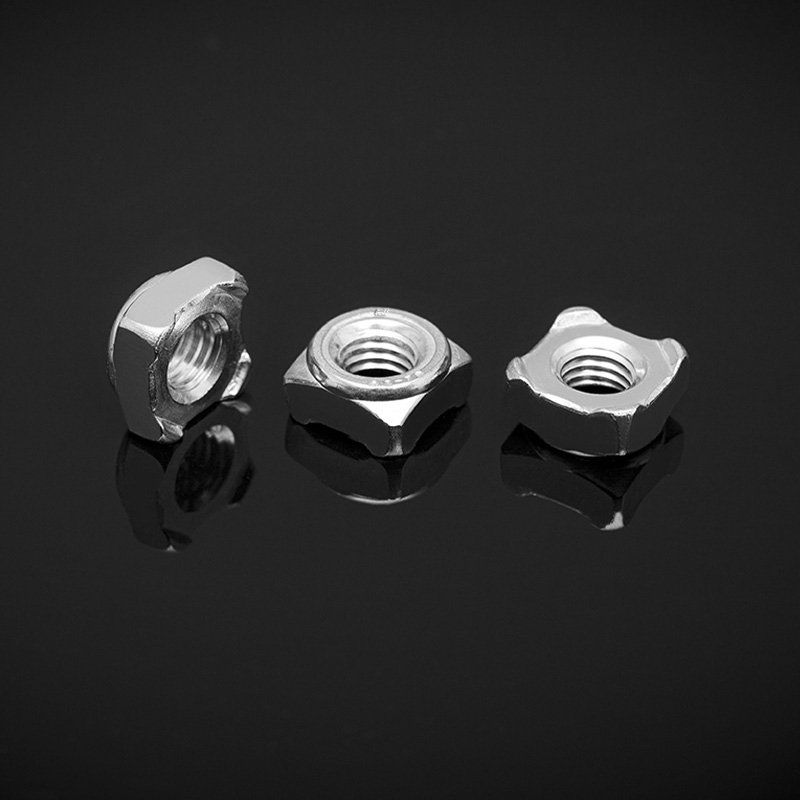

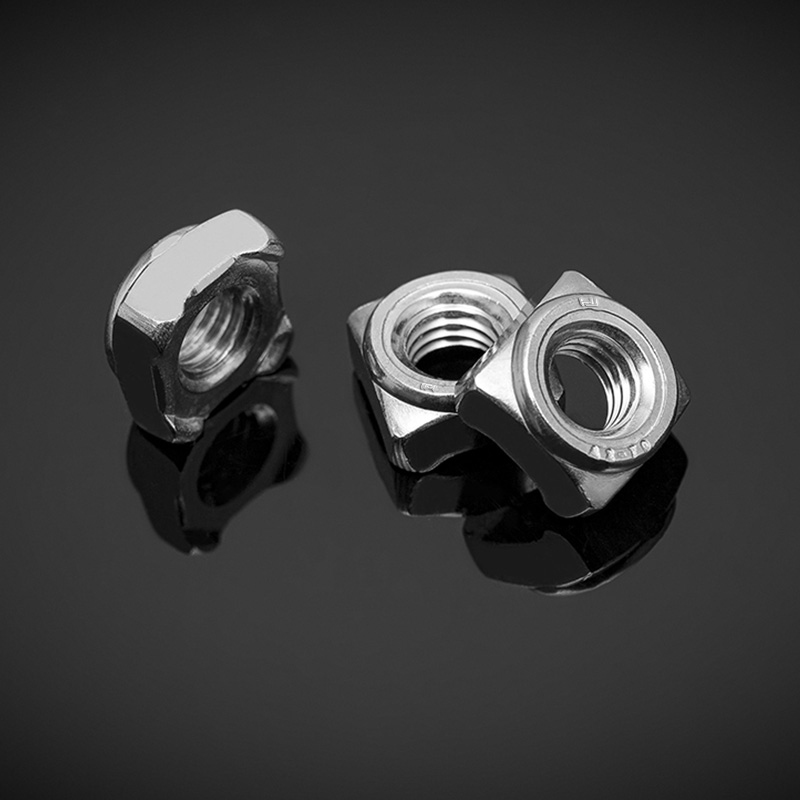

DIN 928 Stainless Steel Square Weld Nuts


DIN 928 Stainless Steel Square Weld Nuts
DIN 928 Stainless Steel Square Weld Nuts DIN 928 Stainless Steel Square Weld Nuts

Appearance Characteristics

Square, usually designed for welding connection

Internal Features

Standard internal thread, square outside, can be welded to the structure

Core Purpose

For welding to metal plates to form permanent connections

Advantages and Features

The square design is easy to weld and suitable for large-area connections.

Typical Uses

Commonly used for metal connections that require welding

Key Indicators for Selection

Thread size, square design, welding strength

Industry-Specific Requirements

Welding industry: Suitable for structural fixation that requires welding.

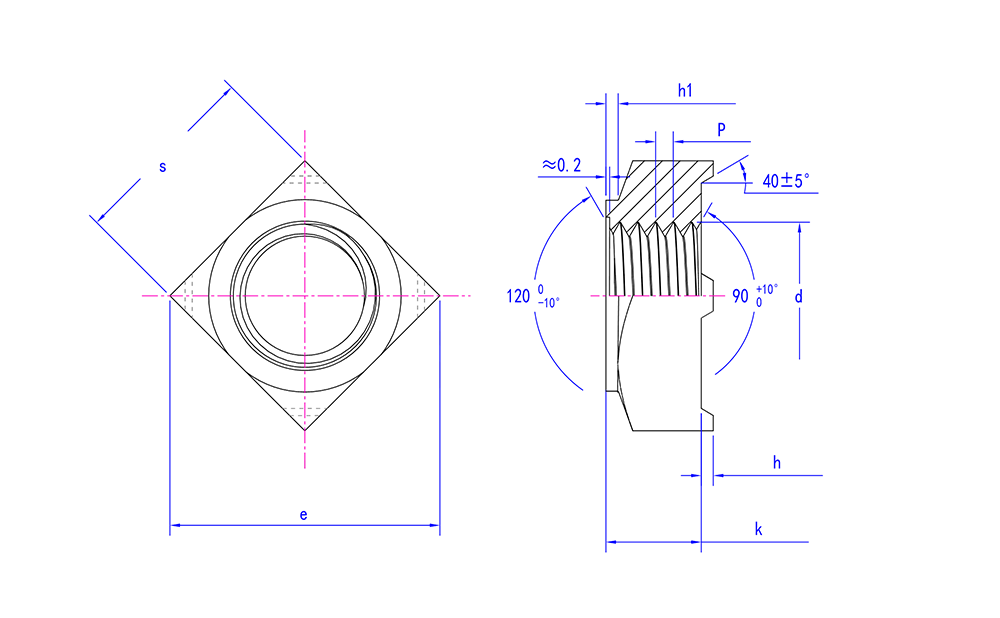

Product specification:

Mon M4 M5 M6 M8 M10 M12 M14 M16
P 0.7 0.8 1 1|1.25 1|1.25|1.5 1.25|1.5|1.75 1.5|2 1.5|2
e min 9 12 13 18 22 25 28 32
h max 0.7 0.9 0.9 1.1 1.3 1.5 1.5 1.7
h min 0.5 0.7 0.7 0.9 1.1 1.3 1.3 1.5
h1 min 0.4 0.6 0.7 1.1 1.25 1.75 1.75 2
h1 max 1.3 1.5 1.8 2 2.2 3 3.2 4
k max 3.5 4.2 5 6.5 8 9.5 11.4 13
k min 3.2 3.9 4.7 6.14 7.64 9.14 10.97 12.57
s max 7 9 10 14 17 19 22 24
s min 6.64 8.64 9.64 13.57 16.57 18.48 21.48 23.48
