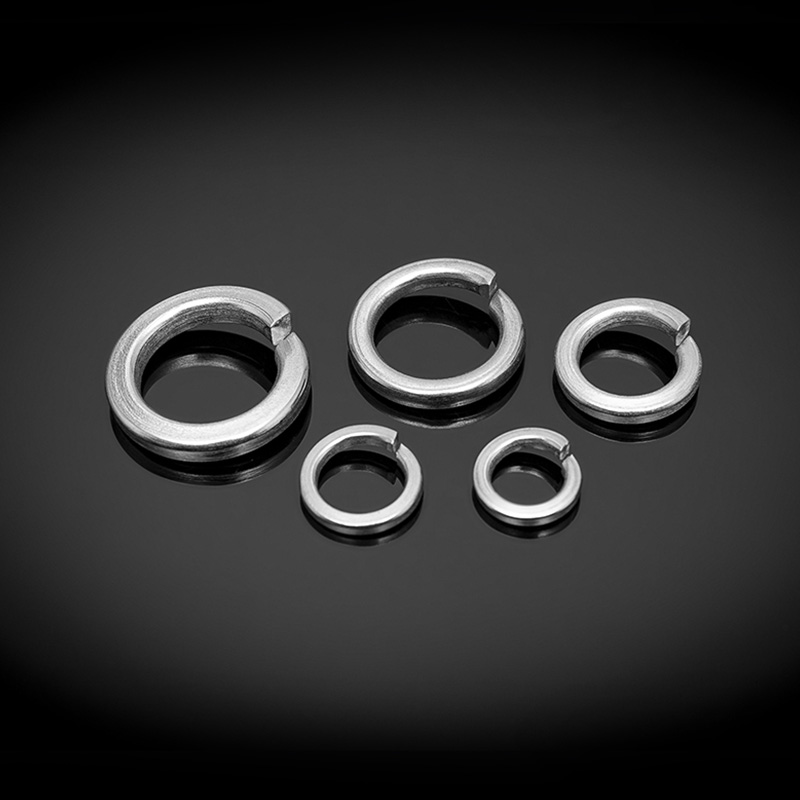

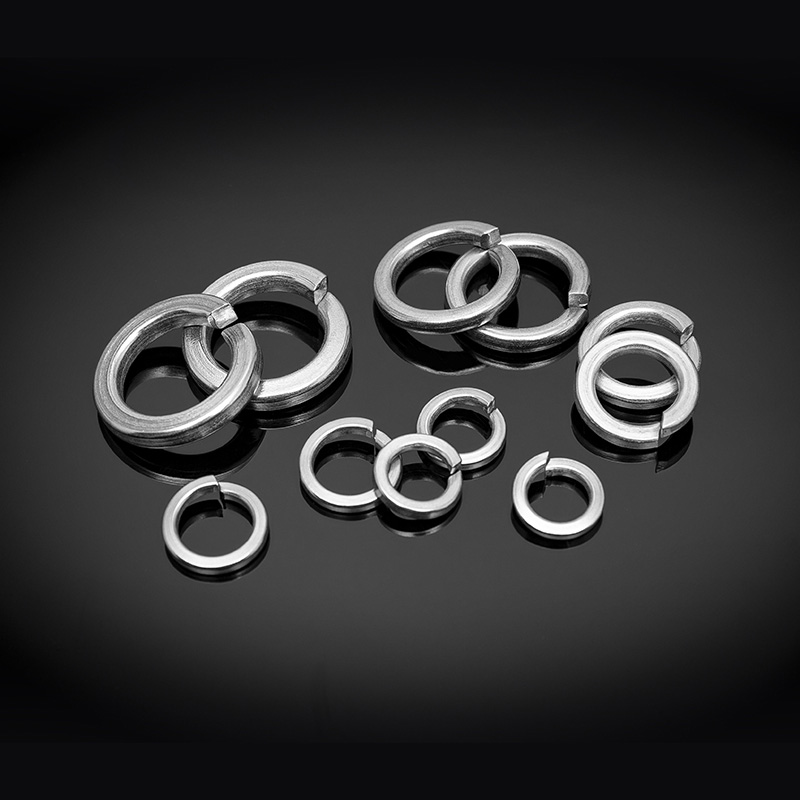

DIN127 Stainless Steel Spring Washers


DIN127 Stainless Steel Spring Washers
DIN127 Stainless Steel Spring Washers DIN127 Stainless Steel Spring Washers

Appearance Characteristics

Standard round design, provides basic load distribution function, usually metal, smooth surface

Internal Features

The internal hole is of standard size, commonly used for standard screw connections.

Core Purpose

Used for connection with ordinary loads to prevent wear and provide load distribution

Advantages and Features

Provides a simple and effective solution, widely used in conventional equipment and connections

Typical Uses

Suitable for mechanical equipment and light-load connections

Key Indicators for Selection

Size (diameter, thickness, hole diameter), material (stainless steel or other metal)

Industry-Specific Requirements

 Machinery industry: Suitable for conventional load connections, low-cost applications.

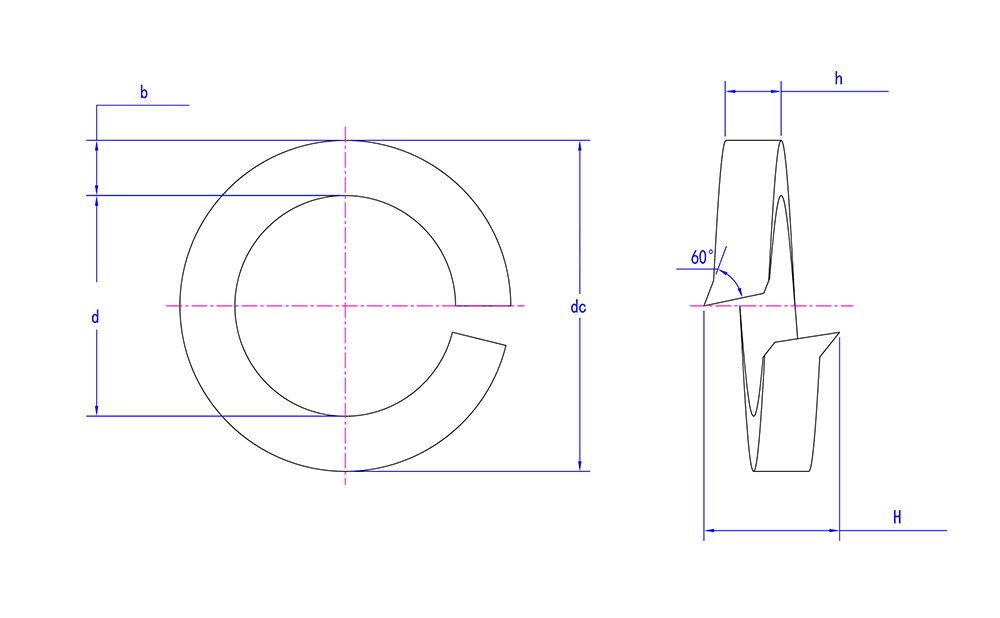

Product specification:

Mon Φ3 Φ3.5 Φ4 Φ5 Φ6 Φ7 Φ8 Φ10 Φ12 Φ14 Φ16 Φ18 Φ20 Φ22 Φ24 Φ27 Φ30 Φ36 Φ39 Φ42 Φ45 Φ48 Φ52 Φ56 Φ60 Φ64 Φ68 Φ72 Φ80 Φ90 Φ100
d min 3.1 3.6 4.1 5.1 6.1 7.1 8.1 10.2 12.2 14.2 16.2 18.2 20.2 22.5 24.5 27.5 30.5 36.5 39.5 42.5 45.5 49 53 57 61 65 69 73 81 91 101
d max 3.4 3.9 4.4 5.4 6.5 7.5 8.5 10.7 12.7 14.7 17 19 21.2 23.5 25.5 28.5 31.7 37.7 40.7 43.7 46.7 50.5 54.5 58.5 62.5 66.5 70.5 74.5 82.5 92.5 102.5
b max 1.4 1.4 1.6 1.9 2.65 2.65 3.15 3.7 4.2 4.7 5.2 5.2 6.2 6.2 7.25 7.25 8.25 10.25 10.25 12.25 12.25 12.25 14.25 14.25 14.25 14.25 14.25 14.25 14.25 14.25 14.25
b min 1.2 1.2 1.4 1.7 2.35 2.35 2.85 3.3 3.8 4.3 4.8 4.8 5.8 5.8 6.75 6.75 7.75 9.75 9.75 11.75 11.75 11.75 13.75 13.75 13.75 13.75 13.75 13.75 13.75 13.75 13.75
h max 0.9 0.9 1 1.3 1.7 1.7 2.1 2.35 2.65 3.15 3.7 3.7 4.2 4.2 5.2 5.2 6.2 6.2 6.2 7.25 7.25 7.25 8.25 8.25 8.25 8.25 8.25 8.25 8.25 8.25 8.25
h min 0.7 0.7 0.8 1.1 1.5 1.5 1.9 2.05 2.35 2.85 3.3 3.3 3.8 3.8 4.8 4.8 5.8 5.8 5.8 6.75 6.75 6.75 7.75 7.75 7.75 7.75 7.75 7.75 7.75 7.75 7.75
H min 1.9 1.9 2.1 2.7 3.6 3.6 4.6 5 5.8 6.8 7.8 7.8 8.8 8.8 11 11 13.6 13.6 13.6 15.6 15.6 15.6 18 18 18 18 18 18 18 18 18
H max 2.1 2.2 2.5 3.2 4.2 4.2 5.4 5.9 6.8 8 9.2 9.2 10.4 10.4 13 13 16.1 16.1 16.1 18.4 18.4 18.4 21.2 21.2 21.2 21.2 21.2 21.2 21.2 21.2 21.2
dc max 6.2 6.7 7.6 9.2 11.8 12.8 14.8 18.1 21.1 24.1 27.4 29.4 33.6 35.9 40 43 48.2 58.2 61.2 68.2 71.2 75 83 87 91 95 99 103 111 121 131
