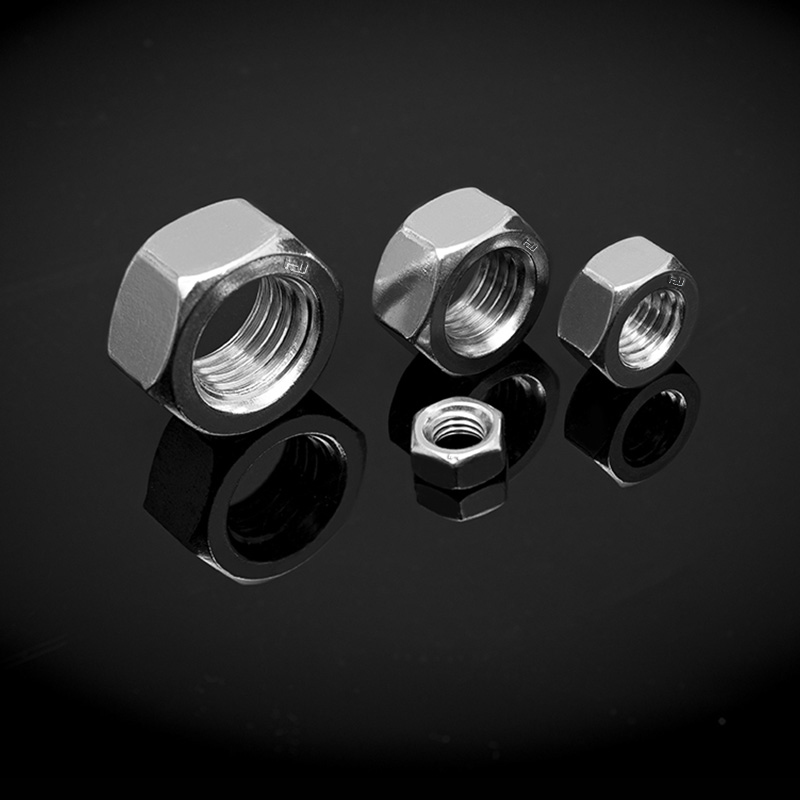

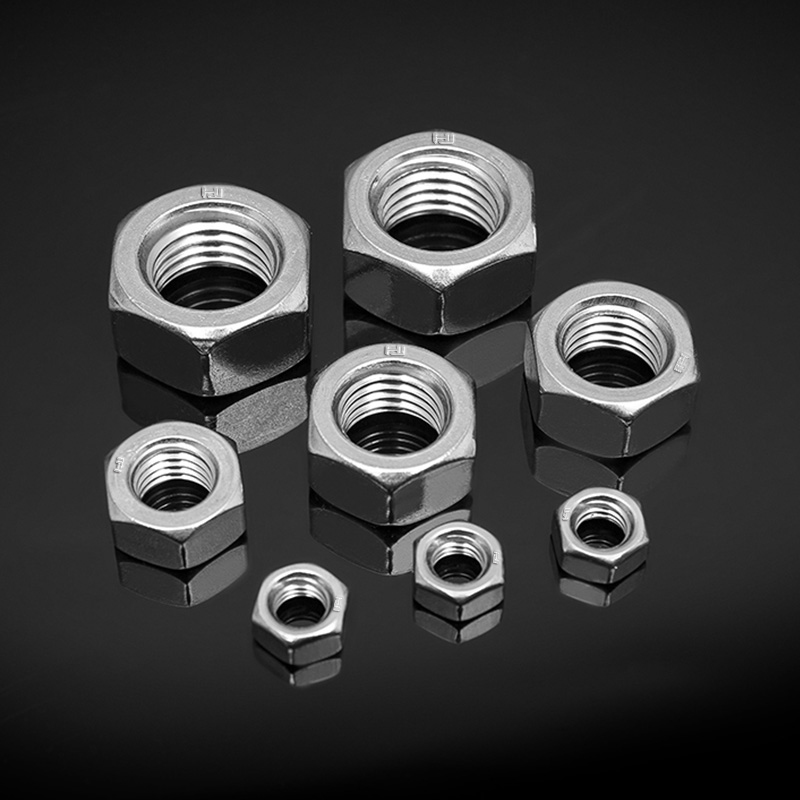

DIN934/GB6170 Stainless Steel Hexagon Nuts


DIN934/GB6170 Stainless Steel Hexagon Nuts
DIN934/GB6170 Stainless Steel Hexagon Nuts DIN934/GB6170 Stainless Steel Hexagon Nuts

Appearance Characteristics

Hexagonal, standard profile, common metal surface treatment

Internal Features

The internal thread is a standard hexagonal thread, suitable for various bolts

Core Purpose

Used for fastening and connection, widely used for fixing mechanical equipment

Advantages and Features

The internal thread is a standard hexagonal thread, suitable for various bolts

Used for fastening and connection, widely used for fixing mechanical equipment

Typical Uses

Suitable for fixing various machinery and equipment

Key Indicators for Selection

Thread type, thread diameter, material (such as 304, 316 stainless steel)

Industry-Specific Requirements

Mechanical industry: needs to withstand medium-intensity loads and is easy to adjust.

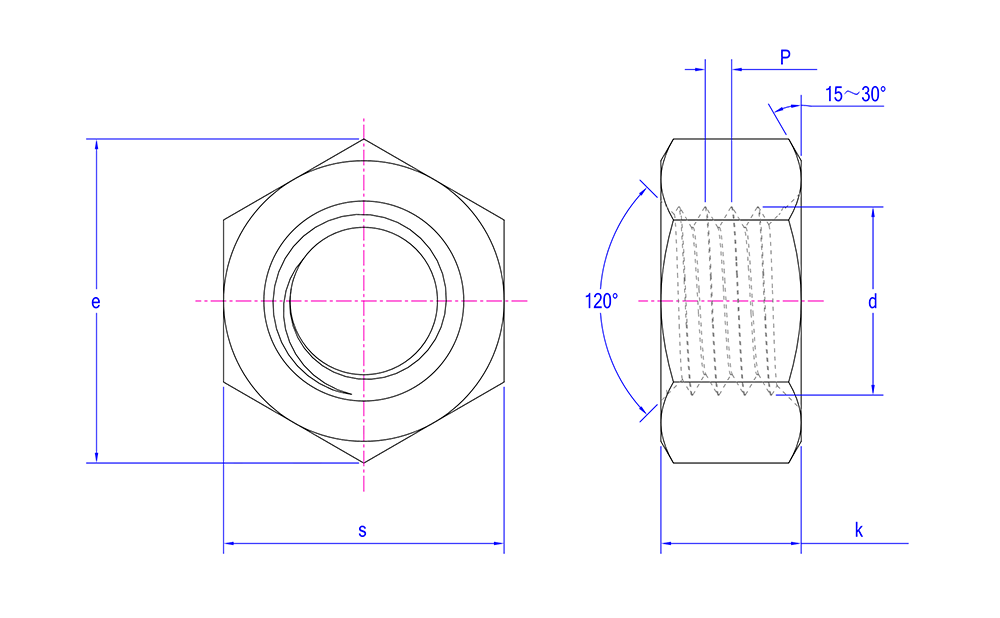

Product specification:

Mon M1 M1.2 M1.4 M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M52 M56 M60 M64 M68 M72 M76 M80 M85 M90 M100 M110 M125 M140 M160
P 0.25 0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1 1|1.25 1|1.25|1.5 1.25|1.5|1.75 1.5|2 1.5|2 1.5|2|2.5 1.5|2|2.5 1.5|2|2.5 2|3 2|3 2|3.5 2|3.5 3|4 3|4 3|4.5 3|4.5 3|5 3|5 4|5.5 4|5.5 4|6 4|6 4|6 4|6 4|6 4|6 4|6 4|6 4|6 5|6 6 6
e min 2.71 3.28 3.28 3.41 4.32 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38 18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 71.3 76.95 82.6 88.25 93.56 99.21 104.86 110.51 116.16 121.81 127.46 133.11 144.08 161.02 172.32 200.57 220.8 254.7
k max 0.8 1 1.2 1.3 1.6 2 2.4 2.8 3.2 4 5 5.5 6.5 8 10 11 13 15 16 18 19 22 24 26 29 31 34 36 38 42 45 48 51 54 58 61 64 68 72 80 88 100 112 128
k min 0.55 0.75 0.95 1.05 1.35 1.75 2.15 2.55 2.9 3.7 4.7 5.2 6.14 7.64 9.64 10.3 12.3 14.3 14.9 16.9 17.7 20.7 22.7 24.7 27.4 29.4 32.4 34.4 36.4 40.4 43.4 46.4 49.1 52.1 56.1 59.1 62.1 66.1 70.1 78.1 85.8 97.8 109.8 125.5
s max 2.5 3 3 3.2 4 5 5.5 6 7 8 10 11 13 17 19 22 24 27 30 32 36 41 46 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 130 145 155 180 200 230
s min 2.4 2.9 2.9 3.02 3.82 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73 16.73 18.67 21.67 23.67 26.16 29.16 31 35 40 45 49 53.8 58.8 63.1 68.1 73.1 78.1 82.8 87.8 92.8 97.8 102.8 107.8 112.8 117.8 127.5 142.5 152.5 177.5 195.4 225.4
