Jiangsu Huajie Stainless Steel Products Co., Ltd.

Jiangsu Huajie Stainless Steel Products Co., Ltd. was founded in 2003, with a registered capital Of 18 million RMB, our factory covers an area of 13,000 square meters, an annual production capacity of 60,000 tons, through 20 years of development, for now, HuaJie is one of almost competitive stainless steel fastener manufacturers in China.
Our company mainly produces stainless steel fasteners, As China ASME/ANSI B18.2.1 (ANSI) Stainless Steel Hexagon Head Bolts Manufacturers and Wholesale ASME/ANSI B18.2.1 (ANSI) Stainless Steel Hexagon Head Bolts Company The company has domestic and foreign advanced production and testing equipment, and product standards Cover GB/JIS/DIN/ANSI/ISO standards, The material includes 201/304/316L, etc. The products are widely used in high-speed rail, nuclear power, communications, new energy, mechanical equipment, petrochemical, military equipment, aerospace, and other fields.

Certificate Of Honor

News

Stainless Steel Bolts: The Unsung Heroes of Modern Engineering and Construction
18 Jul, 2025
In an era where infrastructure durability and material reliability are paramount, stainless steel bolts have emerged as critical components across industries—from skyscraper construction to aerospace engineering. These corrosion-resistant f...
READ MORE
What’s the Difference Between Stainless Steel Bolts, Screws, and Studs
11 Jul, 2025
When working with stainless steel fasteners, it’s common to see terms like bolt, screw, and stud used interchangeably. While they may look similar at first glance and are all used to join materials together, each of these fasteners has a un...
READ MORE
Stainless Steel Bolts: The Corrosion-Resistant Fastening Solution for Demanding Environments
04 Jul, 2025
Stainless steel bolts stand as a cornerstone of modern engineering, offering exceptional corrosion resistance and strength where ordinary fasteners fail. These specialized bolts protect critical structures – from offshore platforms to medic...
READ MORE

Head Features	UNF fine thread standard
Rod Features	ANSI B18.2.1 specification
Core Purpose	American standard hexagonal bolt, widely used in various types of equipment and machinery
Advantages and Features	Designed according to US standards, suitable for high-load connections
Typical Uses	U.S. standard machinery, heavy-duty connections, such as heavy equipment, industrial structures.
Key Indicators for Selection	Thread type (in accordance with US standards), bolt length, diameter, load capacity, material selection.
Industry-Specific Requirements	US market: Meets US standards and is suitable for the connection of heavy equipment. Construction industry: Used for high-strength connections and meets US building standards.

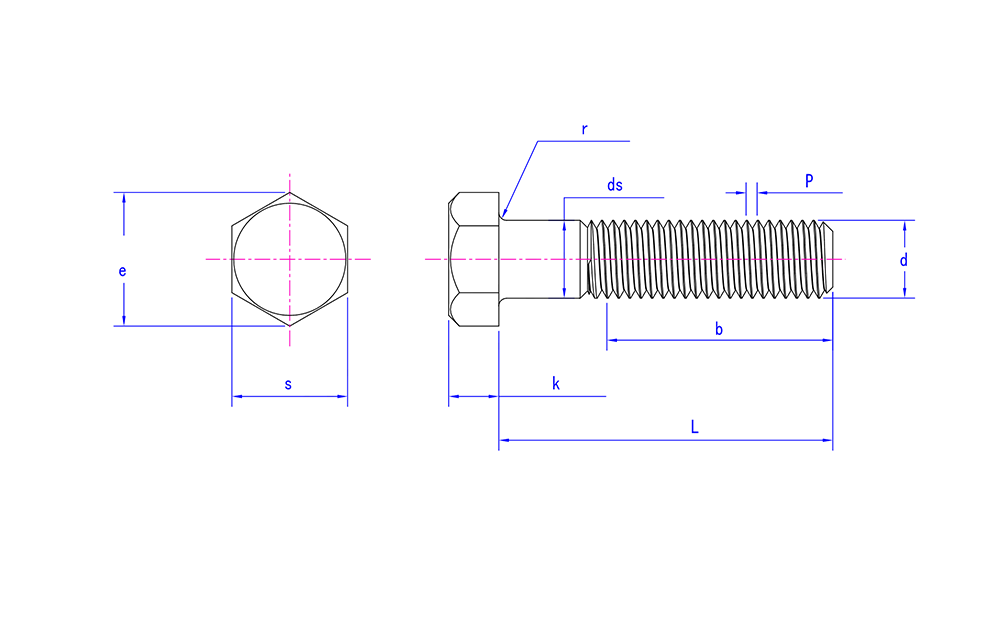

Mon	1/4	5/16	3/8	7/16	1/2	5/8	3/4	7/8	1	1-1/8	1-1/4	1-3/8	1-1/2	1-5/8	1-3/4	1-7/8	2	2-1/4	2-1/2	2-3/4	3	3-1/4	3-1/2	3-3/4	4
P	20\|28\|32	18\|24\|32	16\|24\|32	14\|20\|28	13\|20\|28	11\|18\|24	10\|16\|20	9\|14\|20	8\|12\|20	7\|12\|18	7\|12\|18	6\|12\|18	6\|12\|18	6\|12\|18	5\|8\|12	6	4.5	4.5	4	4	4	4	4	4	4
ds max	0.26	0.324	0.388	0.452	0.515	0.642	0.768	0.895	1.022	1.149	1.277	1.404	1.531	1.658	1.785	1.912	2.039	2.305	2.559	2.827	3.081	3.335	3.589	3.858	4.111
ds min	0.237	0.298	0.36	0.421	0.482	0.605	0.729	0.852	0.976	1.098	1.223	1.345	1.47	1.591	1.716	1.839	1.964	2.214	2.461	2.711	2.961	3.21	3.461	3.726	3.975
s max	0.438	0.5	0.562	0.625	0.75	0.938	1.125	1.312	1.5	1.688	1.875	2.062	2.25	2.438	2.625	2.812	3	3.375	3.75	4.125	4.5	4.875	5.25	5.625	6
s min	0.425	0.484	0.544	0.603	0.725	0.906	1.088	1.269	1.45	1.631	1.812	1.994	2.175	2.356	2.538	2.719	2.9	3.262	3.625	3.988	4.35	4.712	5.075	5.437	5.8
e max	0.505	0.577	0.65	0.722	0.866	1.083	1.299	1.516	1.732	1.949	2.165	2.382	2.598	2.815	3.031	3.248	3.464	3.897	4.33	4.763	5.196	5.629	6.062	6.495	6.928
e min	0.484	0.552	0.62	0.687	0.826	1.033	1.24	1.447	1.653	1.859	2.066	2.273	2.48	2.616	2.893	3.099	3.306	3.719	4.133	4.546	4.959	5.372	5.786	6.198	6.612
k max	0.188	0.235	0.268	0.316	0.364	0.444	0.524	0.604	0.7	0.78	0.876	0.94	1.036	1.116	1.196	1.276	1.388	1.548	1.708	1.869	2.06	2.251	2.38	2.572	2.764
k min	0.15	0.195	0.226	0.272	0.302	0.378	0.455	0.531	0.591	0.658	0.749	0.81	0.902	0.978	1.054	1.13	1.175	1.327	1.479	1.632	1.815	1.936	2.057	2.241	2.424
r max	0.03	0.03	0.03	0.03	0.03	0.06	0.06	0.06	0.09	0.09	0.09	0.09	0.09	0.09	0.12	0.12	0.12	0.19	0.19	0.19	0.19	0.19	0.19	0.19	0.19
r min	0.01	0.01	0.01	0.01	0.01	0.02	0.02	0.02	0.03	0.03	0.03	0.03	0.03	0.03	0.04	0.04	0.04	0.06	0.06	0.06	0.06	0.06	0.06	0.06	0.06

Web Menu

Product Search

Language

Exit Menu

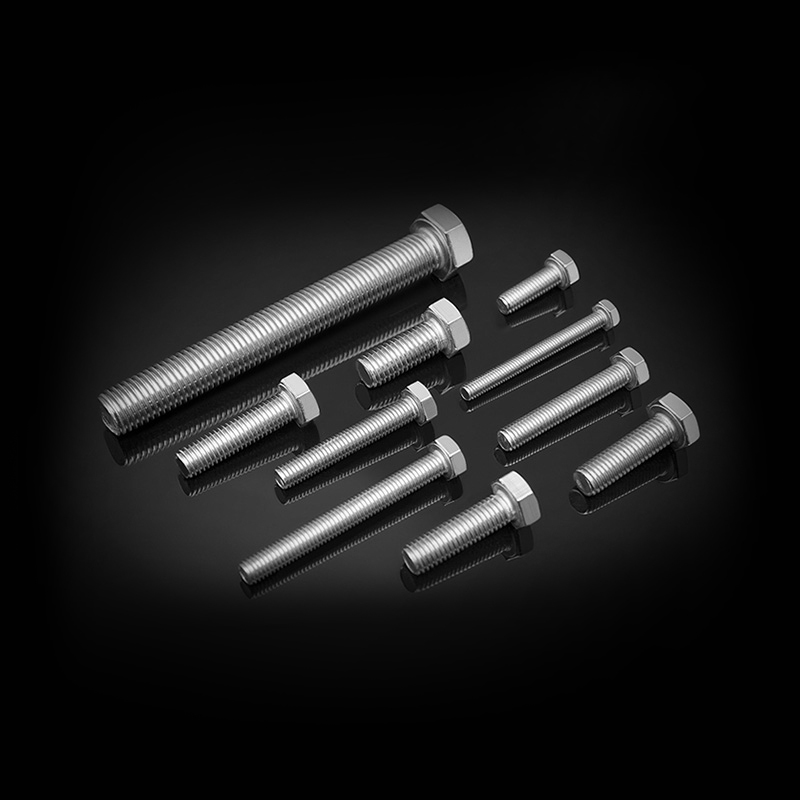

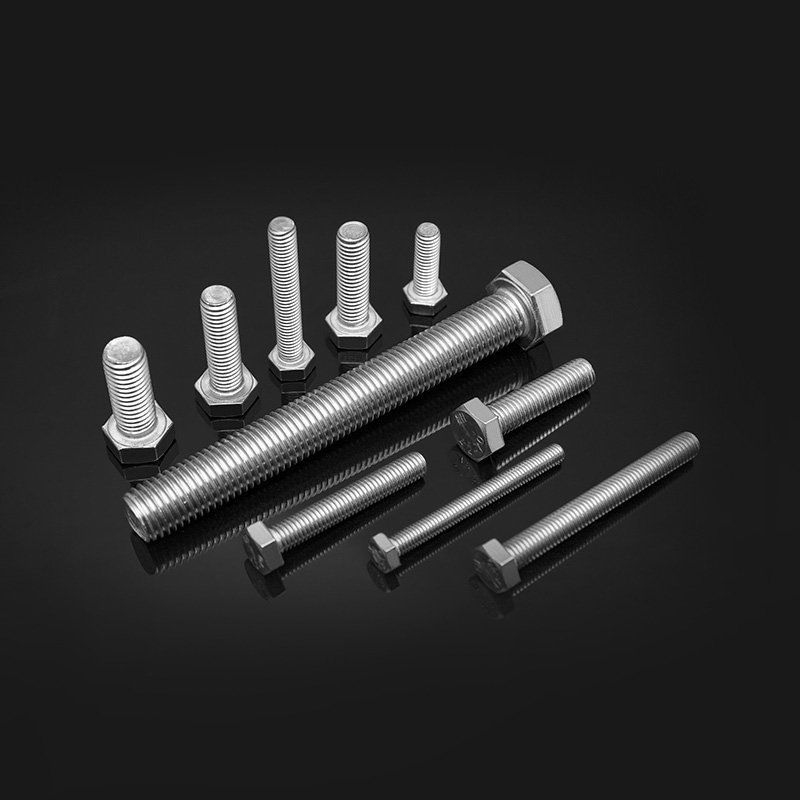

ASME/ANSI B18.2.1 (ANSI) Stainless Steel Hexagon Head Bolts
