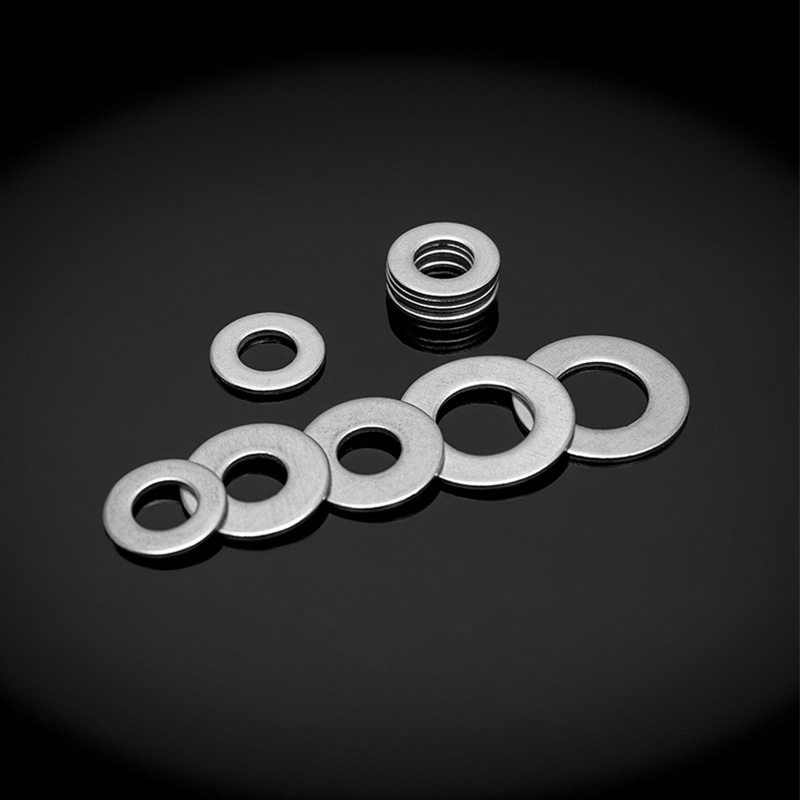

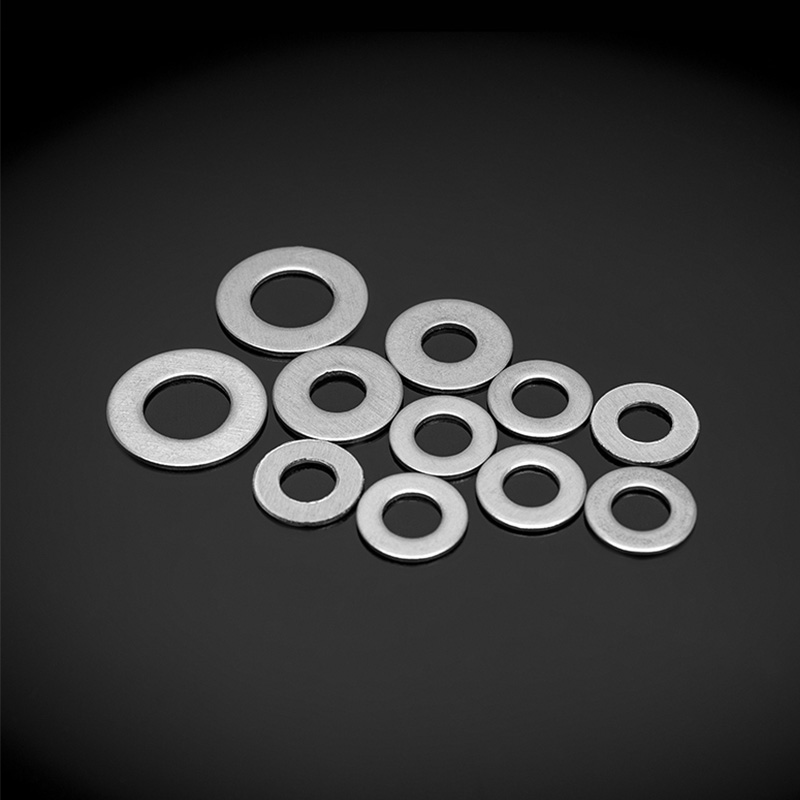

DIN 125 Stainless Steel Plain Washers


DIN 125 Stainless Steel Plain Washers
DIN 125 Stainless Steel Plain Washers DIN 125 Stainless Steel Plain Washers

Appearance Characteristics

Round flat washers, usually metal surface, uniform thin design

Internal Features

Circular hole inside, often uniform flat gasket

Core Purpose

For evenly distributing loads to prevent wear caused by direct contact between nuts and bolts

Advantages and Features

The design is simple, provides good load distribution, and is easy to use.

Typical Uses

For basic mechanical equipment and lower load connections

Key Indicators for Selection

Material (stainless steel), size (diameter, thickness), hole size

Industry-Specific Requirements

Mechanical industry: Suitable for ordinary load connection to prevent direct wear.

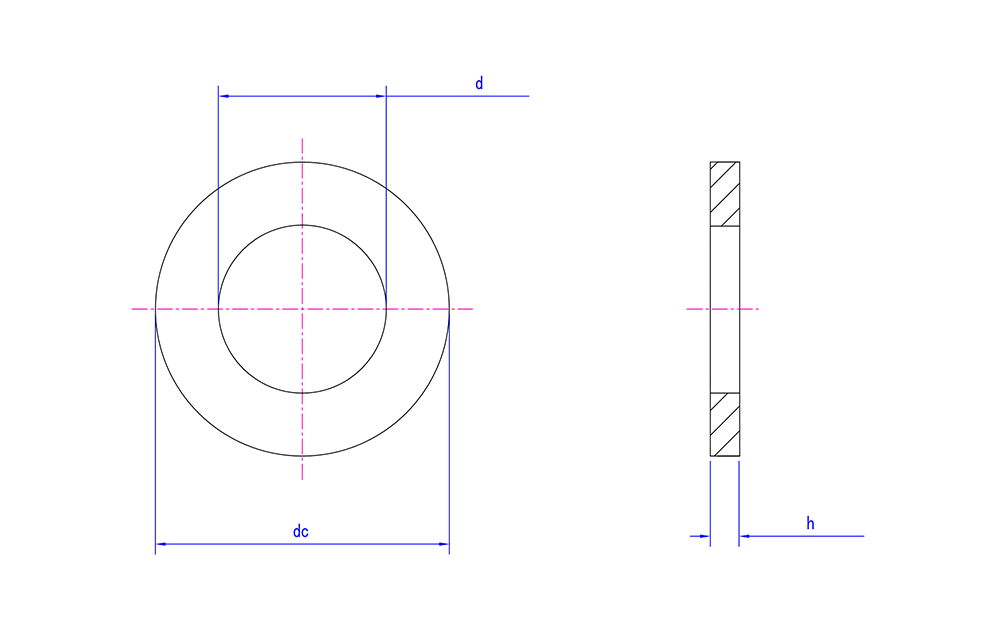

Product specification:

Mon Φ1.6 Φ1.7 Φ2 Φ2.3 Φ2.5 Φ2.6 Φ3 Φ3.5 Φ4 Φ5 Φ6 Φ7 Φ8 Φ10 Φ12 Φ14 Φ16 Φ18 Φ20 Φ22 Φ24 Φ26 Φ27 Φ28 Φ30 Φ32 Φ33 Φ35 Φ36
d min 1.7 1.8 2.2 2.5 2.7 2.8 3.2 3.7 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 27 28 29 31 33 34 36 37
d max 1.84 1.94 2.34 2.64 2.84 2.94 3.38 3.88 4.48 5.48 6.62 7.62 8.62 10.77 13.27 15.27 17.27 19.33 21.33 23.33 25.33 27.33 28.33 29.33 31.39 33.62 34.62 36.62 37.62
dc max 4 4.5 5 6 6 7 7 8 9 10 12 14 16 20 24 28 30 34 37 39 44 50 50 50 56 60 60 66 66
dc min 3.7 4.2 4.7 5.7 5.7 6.64 6.64 7.64 8.64 9.64 11.57 13.57 15.57 19.48 23.48 27.48 29.48 33.38 36.38 38.38 43.38 49.38 49.38 49.38 55.26 58.8 58.8 64.8 64.8
h max 0.35 0.35 0.35 0.55 0.55 0.55 0.55 0.55 0.9 1.1 1.8 1.8 1.8 2.2 2.7 2.7 3.3 3.3 3.3 3.3 4.3 4.3 4.3 4.3 4.3 5.6 5.6 5.6 5.6
h min 0.25 0.25 0.25 0.45 0.45 0.45 0.45 0.45 0.7 0.9 1.4 1.4 1.4 1.8 2.3 2.3 2.7 2.7 2.7 2.7 3.7 3.7 3.7 3.7 3.7 4.4 4.4 4.4 4.4
