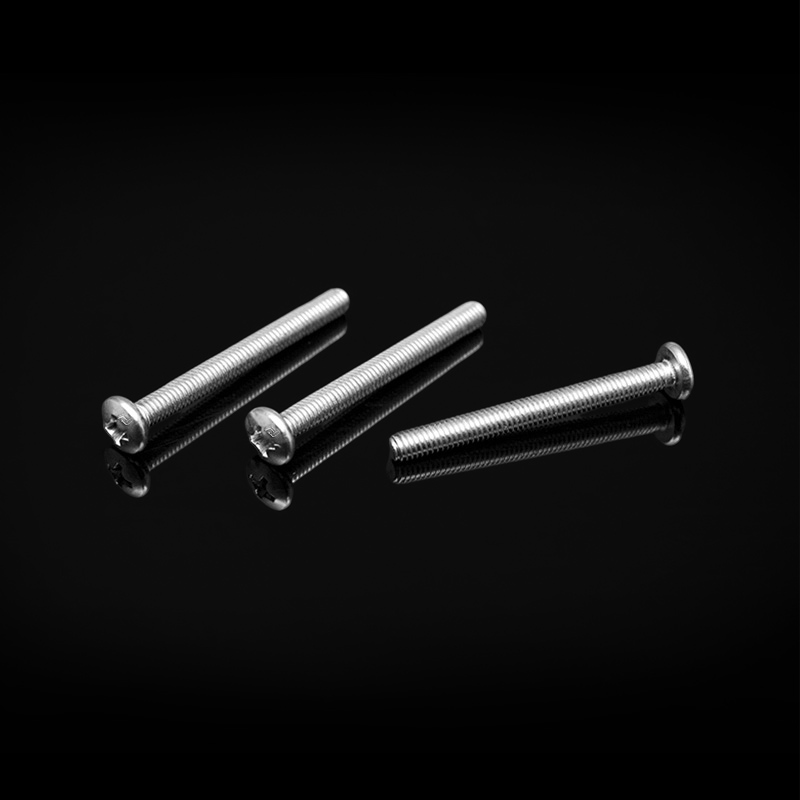

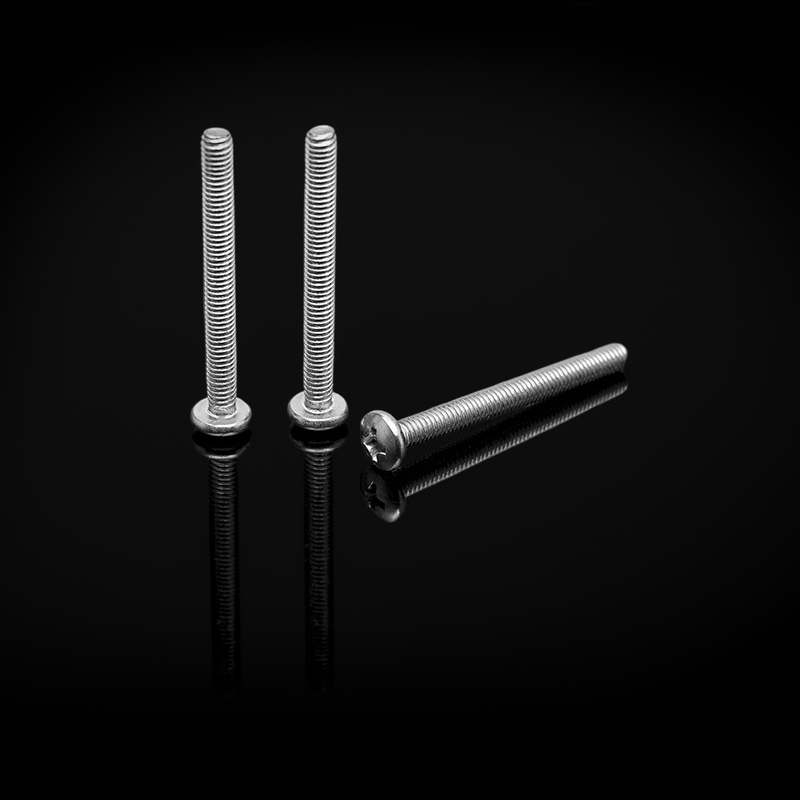

DIN 7985 Stainless Steel Pan Head Screws with Type H Cross Recess

DIN 7985 Stainless Steel Pan Head Screws with Type H Cross Recess
DIN 7985 Stainless Steel Pan Head Screws with Type H Cross Recess DIN 7985 Stainless Steel Pan Head Screws with Type H Cross Recess

Head Features

Type H cross recess drive with a rounded pan-shaped head

Rod Features

Combination of shank and thread for stable assembly positioning

Core Purpose

For general assemblies requiring quick tightening with a cross-point screwdriver

Advantages and Features

Rounded head profile with no sharp edges, smooth handling during assembly, reliable resistance to loosening

Typical Uses

Suitable for electronics, instruments, household appliances

Key Indicators for Selection

Thread specification, screw length, recess size, material grade

Industry-Specific Requirements

Electronics industry: requires precise head dimensions to avoid scratching housing surfaces during assembly
PREV：No previous articleNEXT：DIN 7982 Stainless Steel Cross Recessed Countersunk Head Tapping Screws

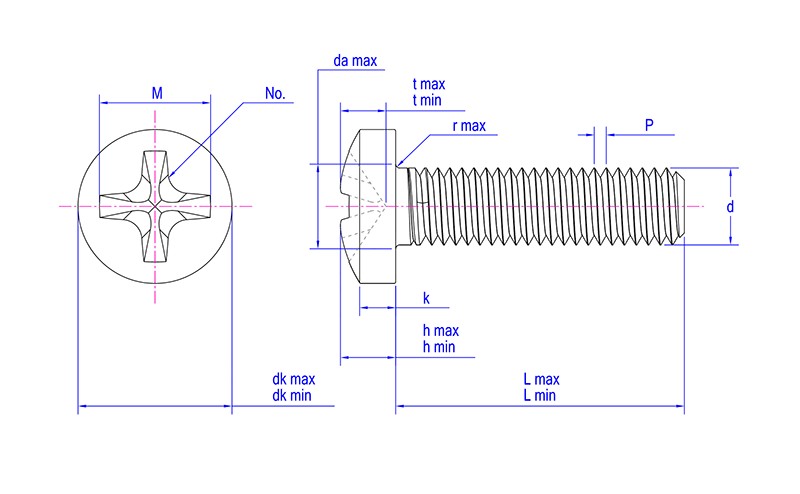

Product specification:

vpnumbga1787925277

Mon

M1.6

M2

M2.5

M3

M3.5

M4

M5

M6

M8

M10

P

0.35

0.4

0.45

0.5

0.6

0.7

0.8

1

1.25

1.5

da max

2.1

2.6

3.1

3.6

4.1

4.7

5.7

6.8

9.2

11.2

dk max

3.2

4

5

6

7

8

10

12

16

20

dk min

2.9

3.7

4.7

5.7

6.64

7.64

9.64

11.57

15.57

19.48

r max

0.1

0.1

0.1

0.1

0.2

0.2

0.2

0.25

0.4

0.4

No.

0

1

1

1

2

2

2

3

4

4

M

1.8

2.5

2.7

3.1

4.2

4.6

5.3

6.8

9

10.2

t min

0.72

1.1

1.3

1.7

1.74

2.04

2.77

3.03

4.18

5.38

t max

1.02

1.4

1.6

2

2.24

2.54

3.27

3.53

4.68

5.88

h max

1.42

1.72

2.12

2.52

2.82

3.25

3.95

4.75

6.15

7.68

h min

1.18

1.48

1.88

2.28

2.58

2.95

3.65

4.45

5.85

7.32

kk

0.8

1.1

1.3

1.6

1.9

2

2.5

3

3.7

4.8
