DIN 7991 Stainless Steel Hexagon Socket Countersunk Head Screws


DIN 7991 Stainless Steel Hexagon Socket Countersunk Head Screws
DIN 7991 Stainless Steel Hexagon Socket Countersunk Head Screws DIN 7991 Stainless Steel Hexagon Socket Countersunk Head Screws

Head Features

Hexagonal head

Rod Features

Self-tapping thread

Core Purpose

Self-tapping for fixing thin sheet materials

Advantages and Features

Easy and quick installation, suitable for materials without pre-threaded holes

Typical Uses

Used for fixing thin steel plates and plastic plates

Key Indicators for Selection

Thread length, diameter, material selection, drive type

Industry-Specific Requirements

Construction industry: commonly used for fixing gypsum boards, light steel structures, etc.

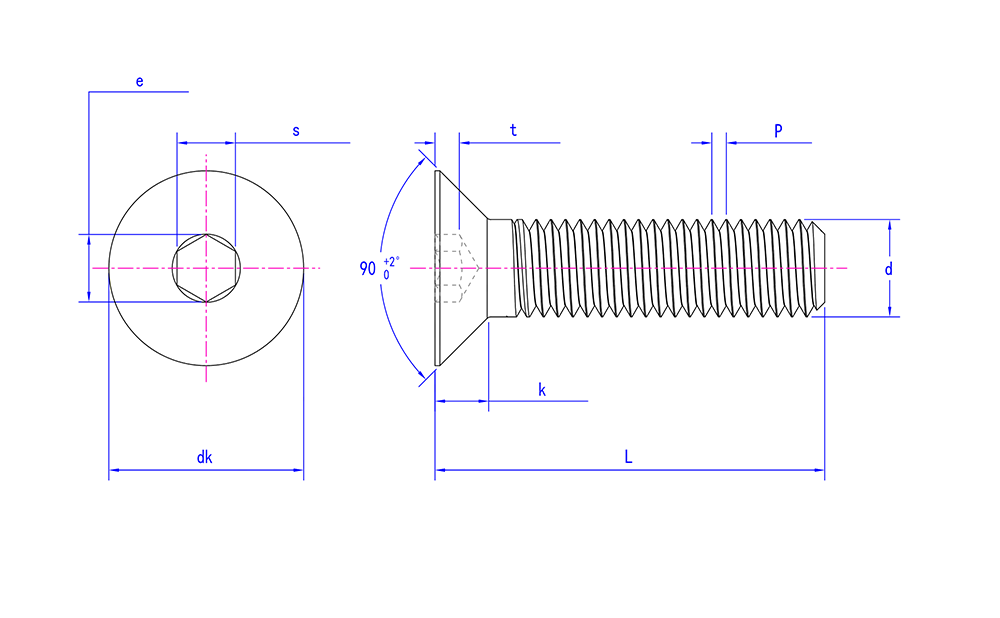

Product specification:

Mon M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24
P 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3
dk max 6 8 10 12 16 20 24 27 30 33 36 36 39
dk min 5.7 7.64 9.64 11.57 15.57 19.48 23.48 26.48 29.48 32.38 35.38 35.38 38.38
e min 2.3 2.87 3.44 4.58 5.72 6.86 9.15 11.43 11.43 13.72 13.72 16 16
k max 1.7 2.3 2.8 3.3 4.4 5.5 6.5 7 7.5 8 8.5 13.1 14
s min 2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025 10.025 12.032 12.032 14.032 14.032
s max 2.1 2.6 3.1 4.12 5.14 6.14 8.175 10.175 10.175 12.212 12.212 14.212 14.212
t max 1.2 1.8 2.3 2.5 3.5 4.4 4.6 4.8 5.3 5.5 5.9 8.8 10.3
t min 0.95 1.55 2.05 2.25 3.2 4.1 4.3 4.5 5 5.2 5.6 8.44 9.87
